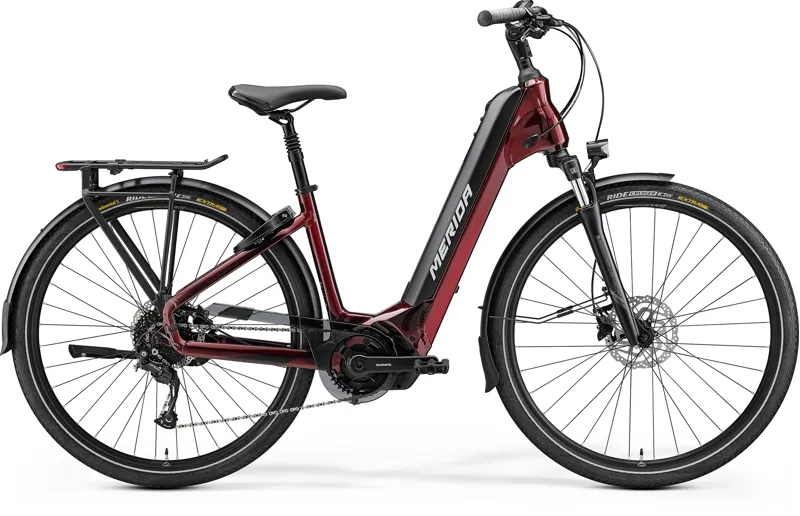

Merida eSpresso City 400 EQ 504Wh Electric Bike in Red and Black

Season:2023

Brand:Merida

Code:P-N870

THIS BIKE IS PART OF OUR BLACK FRIDAY SALE AND IS ELIGIBLE FOR FREE SHIPPING


Merida eSpresso City 400 EQ 504Wh Electric Bike in Red and Black


It's the perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean youre ready to go from the moment you leave the shop. Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light. Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design.

All use a powerful Shimano steps drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling. All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage. Strong but controllable hydraulic disc brakes help you stop with ease
Technical Information
  • Frame
    City Lite II - Hydroformed 6066 triple butted aluminium. 135 x 9mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards
  • Fork
    Suntour NEX E25; Coil; 63mm travel. Max. tyre size: 700 x 52c
  • Headset
    Merida-8252
  • Stem
    Merida Expert; aluminium; 31.8mm diameter; adjustable - Stem length: 65 mm (XS/S/M), 90mm (L/XL)
  • Handlebar
    Merida Expert; aluminium; 640mm wide; 35mm rise
  • Grip
    Merida Expert TK
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano MT-200
  • Brake Calipers
    Front: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor Rear: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor
  • Tyres
    Front: Continental Ride Cruiser; 622-50; wire bead; reflective stripe Rear: Continental Ride Cruiser; 622-50; wire bead; reflective stripe
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Comp TK; 20mm inner rim width; Aluminium Spokes: Black stainless Front Hub: Shimano TX505; 100x9mm; 32 spokes; Center lock Rear Hub: Shimano TX505; 135x9mm; 36 spokes; Center lock
  • Speeds
    9
  • Rear Derailleur
    Shimano Alivio M3100; SGS
  • Shift Levers
    Shimano Alivio M3100
  • Chain
    KMC e9S
  • Cassette
    Shimano HG200; 11-36 teeth; 9 speed
  • Chainset
    Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170mm length crank and chainguard
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-891
  • Saddle
    Merida Expert TK; V-mount
  • Seat Post
    JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel
  • Motor
    Shimano E8035; 504Wh internal battery, Shimano Steps E6100; 60Nm
  • Battery Capacity
    504 Wh
  • eBike Display
    Shimano SC-E5000
