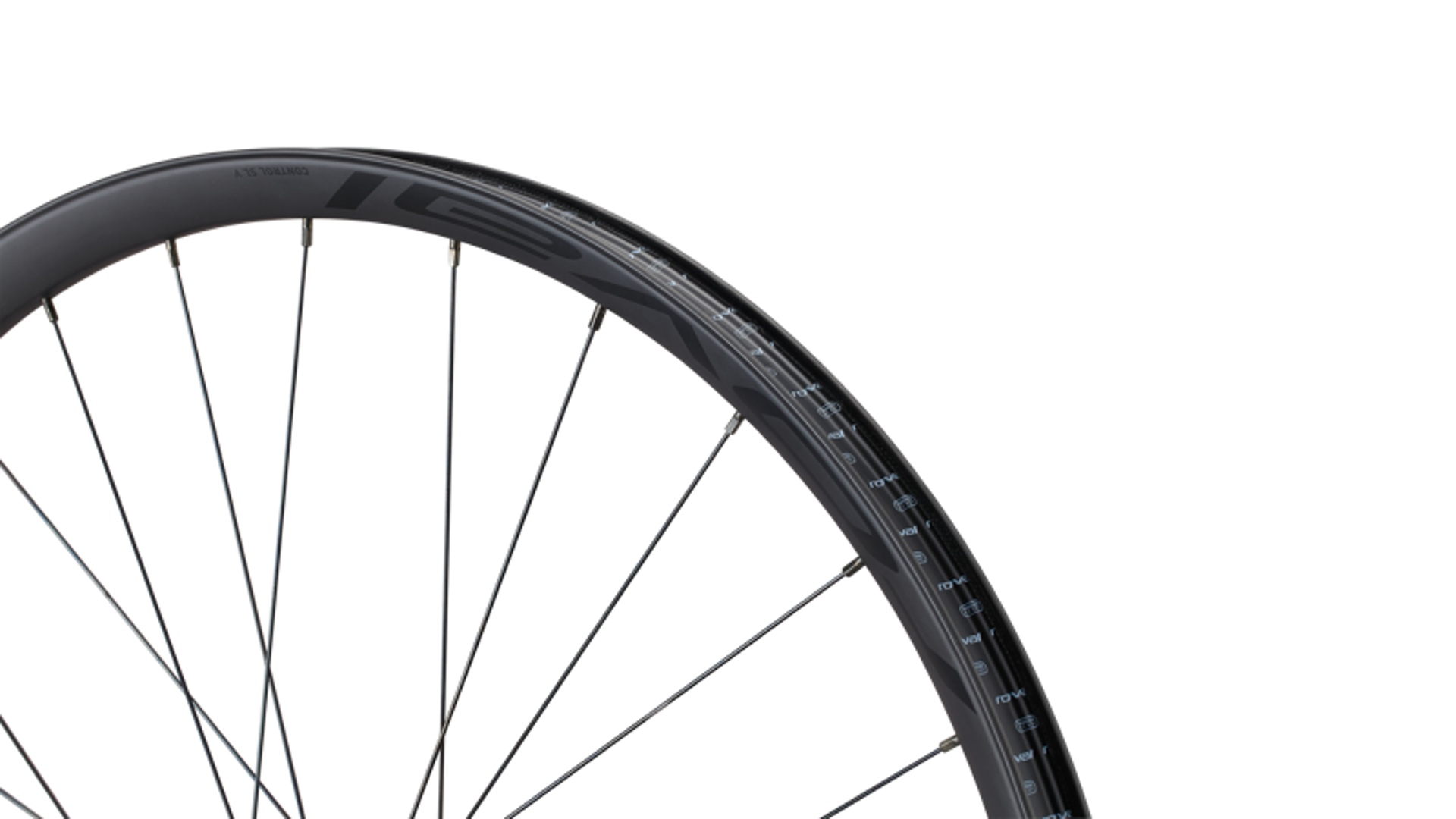

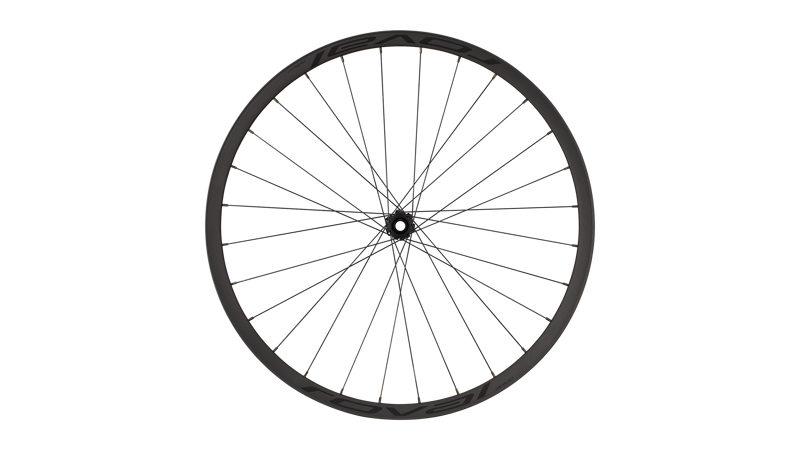

Front Rim
Control SL V Asymmetric Carbon 29" (WC033-1)
-
Front Rim Dimensions
Depth: 25mm, External Width: 37mm, Internal Width: 29mm, Bead Hook Width: 4mm
-
Rear Rim
Control SL V Asymmetric Carbon 29" (WC033-1)
-
Rear Rim Dimensions
Depth: 25mm, External Width: 37mm, Internal Width: 29mm, Bead Hook Width: 4mm
-

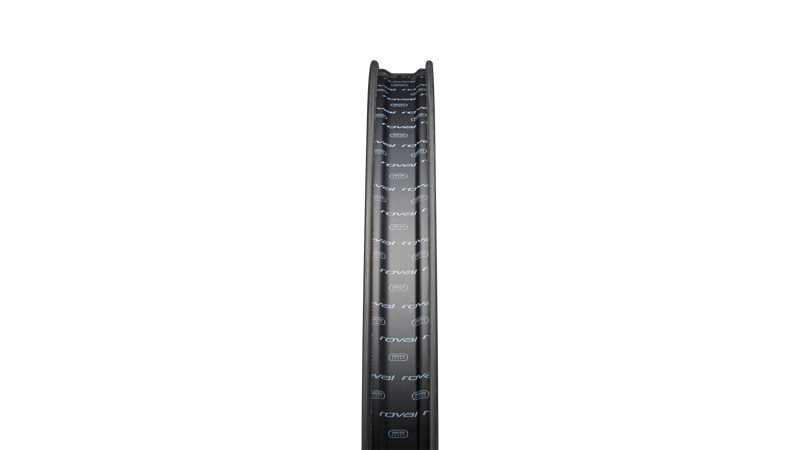

Rim Construction
Carbon Clincher Hookless
-
Wheel Size / ETRTO
29"/622mm
-
Hole Count
Front: 28H, Rear: 28H
-
Tubeless Compatibility
Yes
-
Insert Compatibility
Yes
-
Brake Compatibility
Disc (6-Bolt)
-
Valve Stem Length
40mm Presta
-

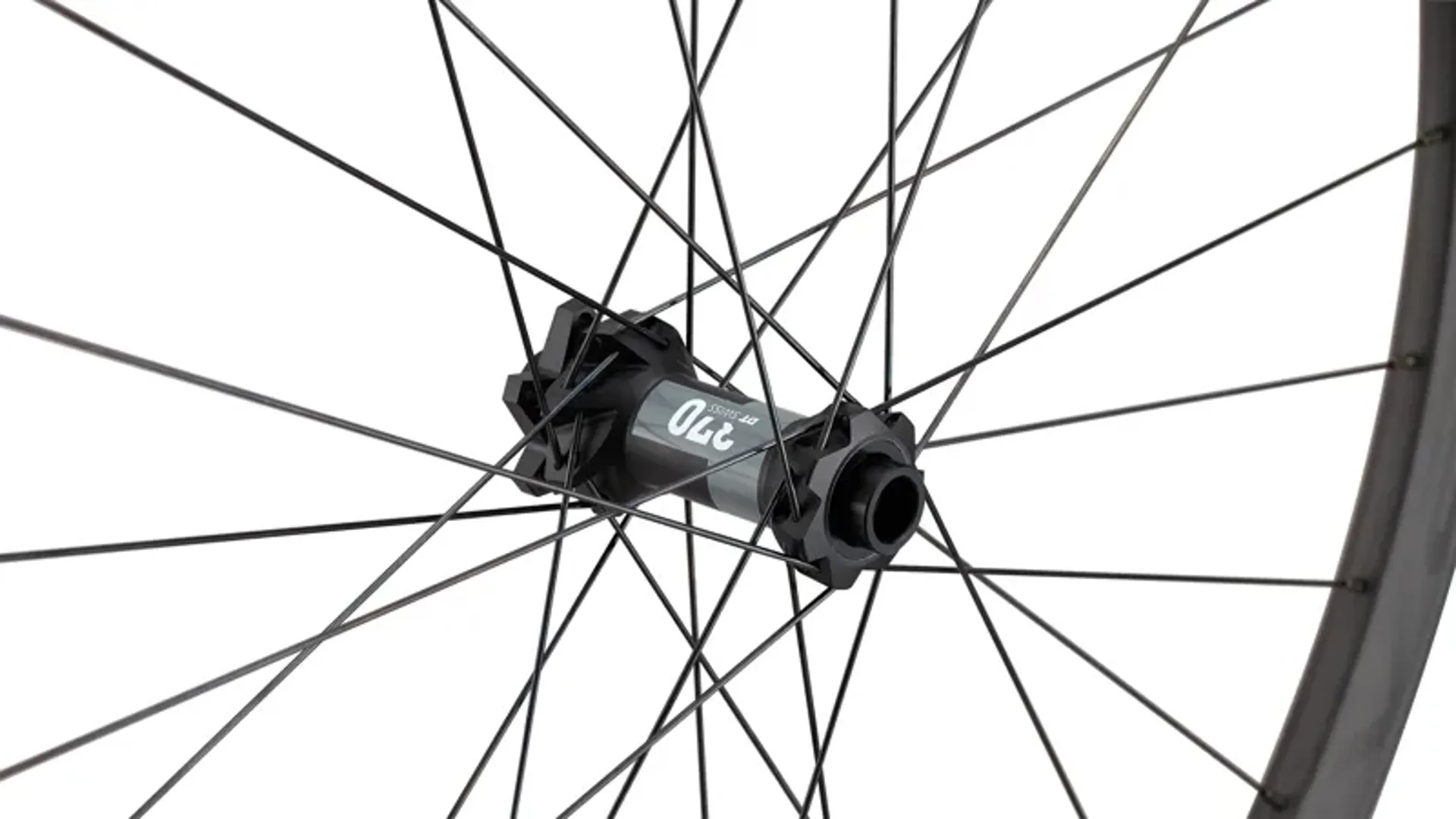

Front Hub
DT Swiss 370 Straight Pull, 6-Bolt, 15x110mm, 19mm OD End Caps Installed
-

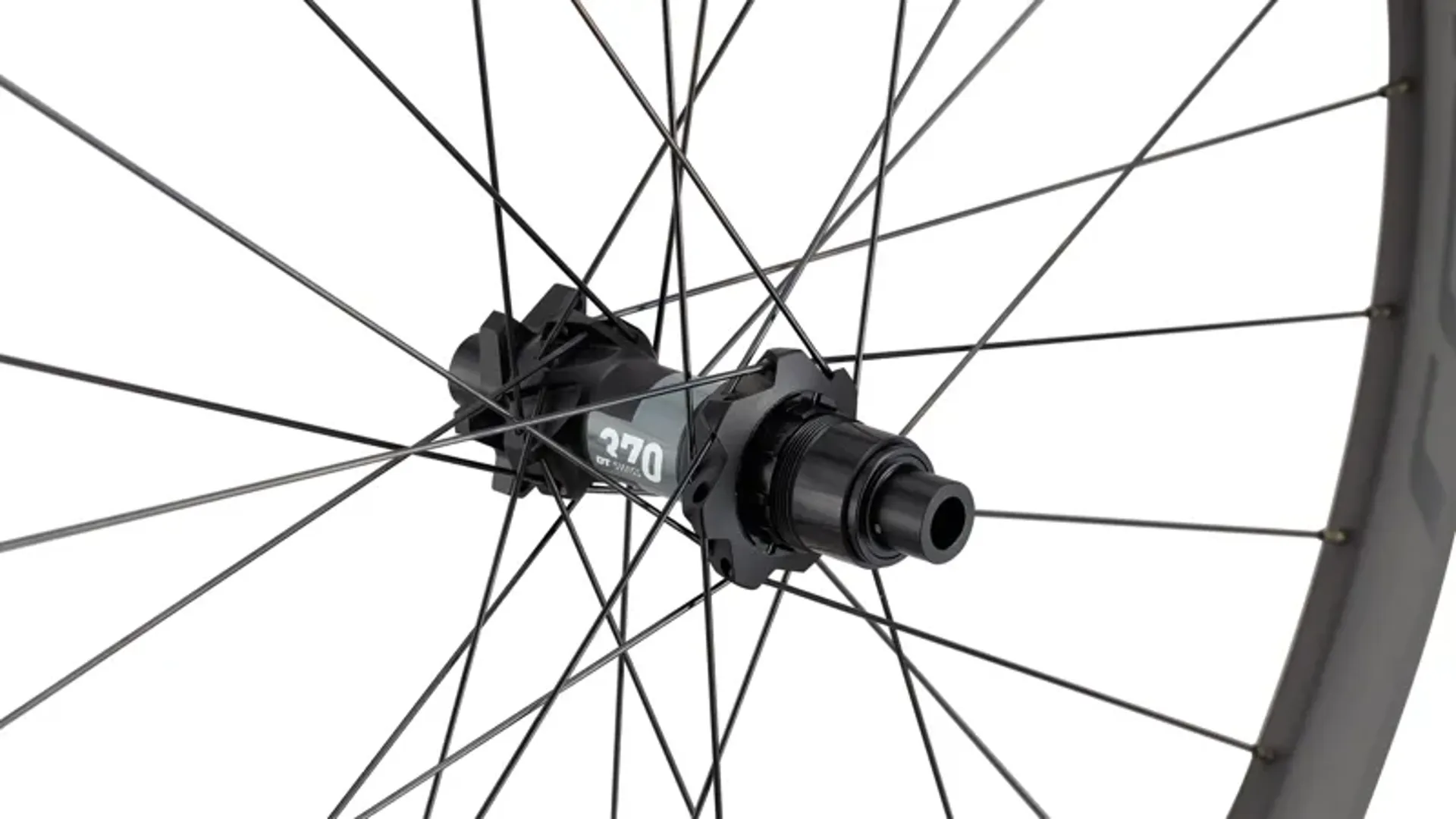

Rear Hub
DT Swiss 370 Straight Pull, 6-Bolt, 12x148mm
-
Front Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
-
Rear Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
-
Rear Freehub Body
DT Swiss Ratched LN (18T): Sram XD
-
Front Spokes
Sapim D-Light Straight Pull, 28qty
-
Rear Spokes
Sapim D-Light Straight Pull, 28qty
-
Front Lacing Pattern
Two-cross / Two-cross (1:1) Not Tucked
-
Rear Lacing Pattern
Two-cross / Two-cross (1:1) Not Tucked
-
Nipples
Sapim, Secure Lock Double Square, Alloy
-
Approved Tire Widths
1.9-2.6"
-
Max Pressure
Tubeless 40 psi, Tubes 40 psi
-
Tire Type
Tubeless, Tube Type Clincher
-
Tubeless Tape Width
30mm
-
Design Tire
Fast Trak Grid Lite T5/T7 TLR XC
-
Front Weight
740g (with tape and valves)
-
Rear Weight
850g (with tape and valves)
-
Wheelset Weight
1,590g (with tape and valves)
-
Extras
4 Extra Spokes and Nipples, 31mm OD End Caps
-
E-bike Approved
Yes, SL style systems or max 350W
-
Weight Limit
275 lbs. / 125 kg.
-
Assembly Method
Hand Built
