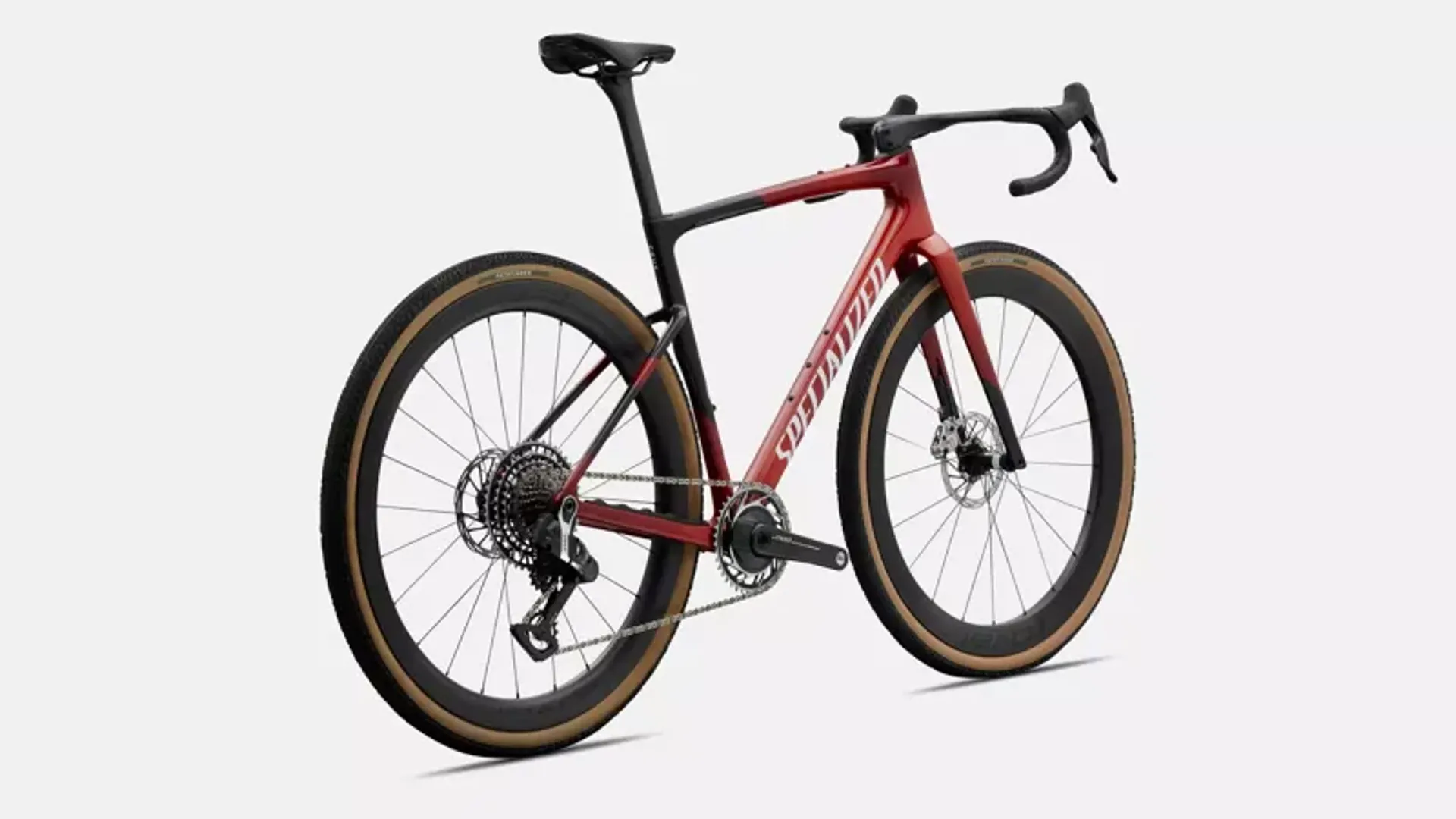

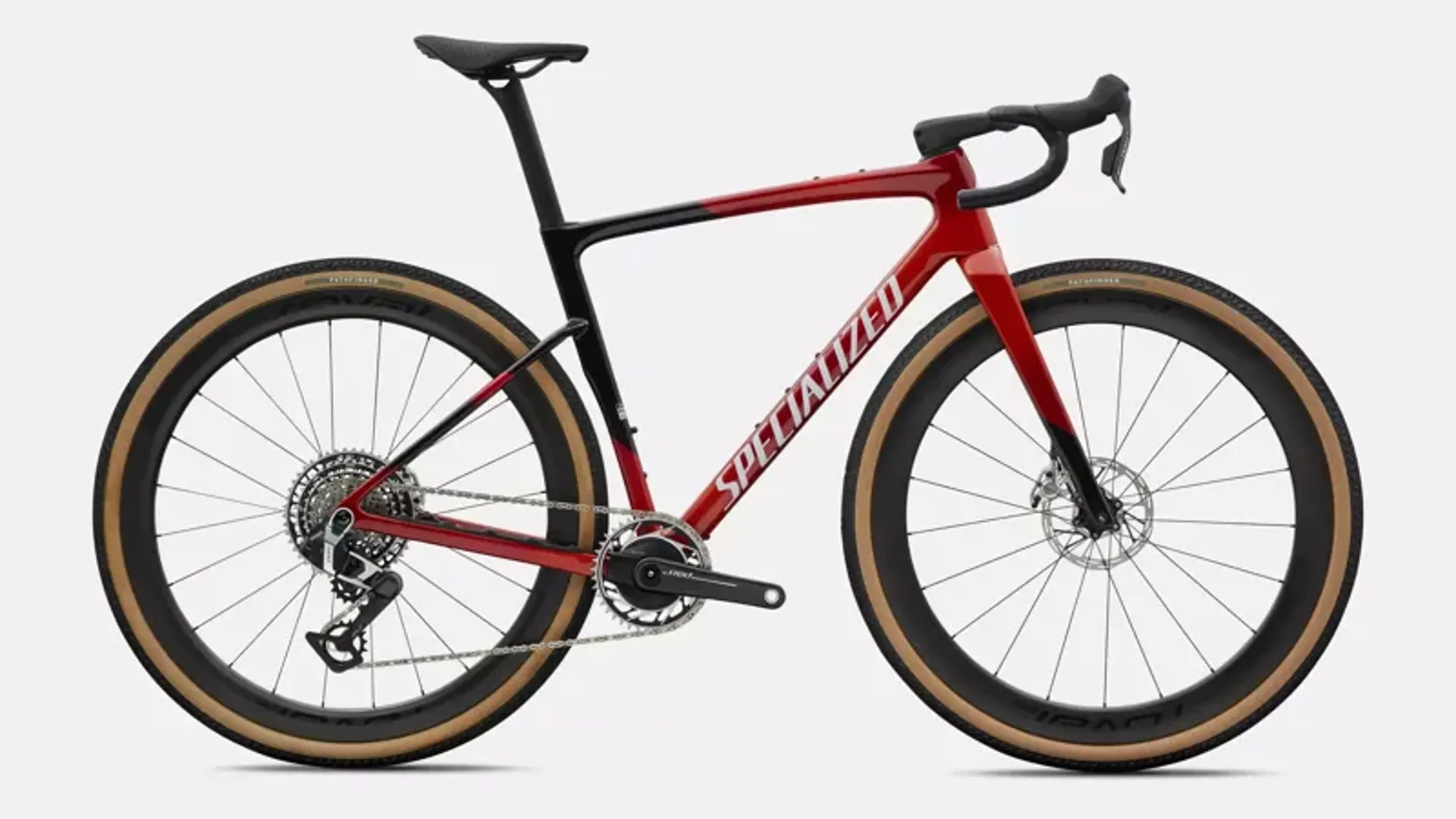

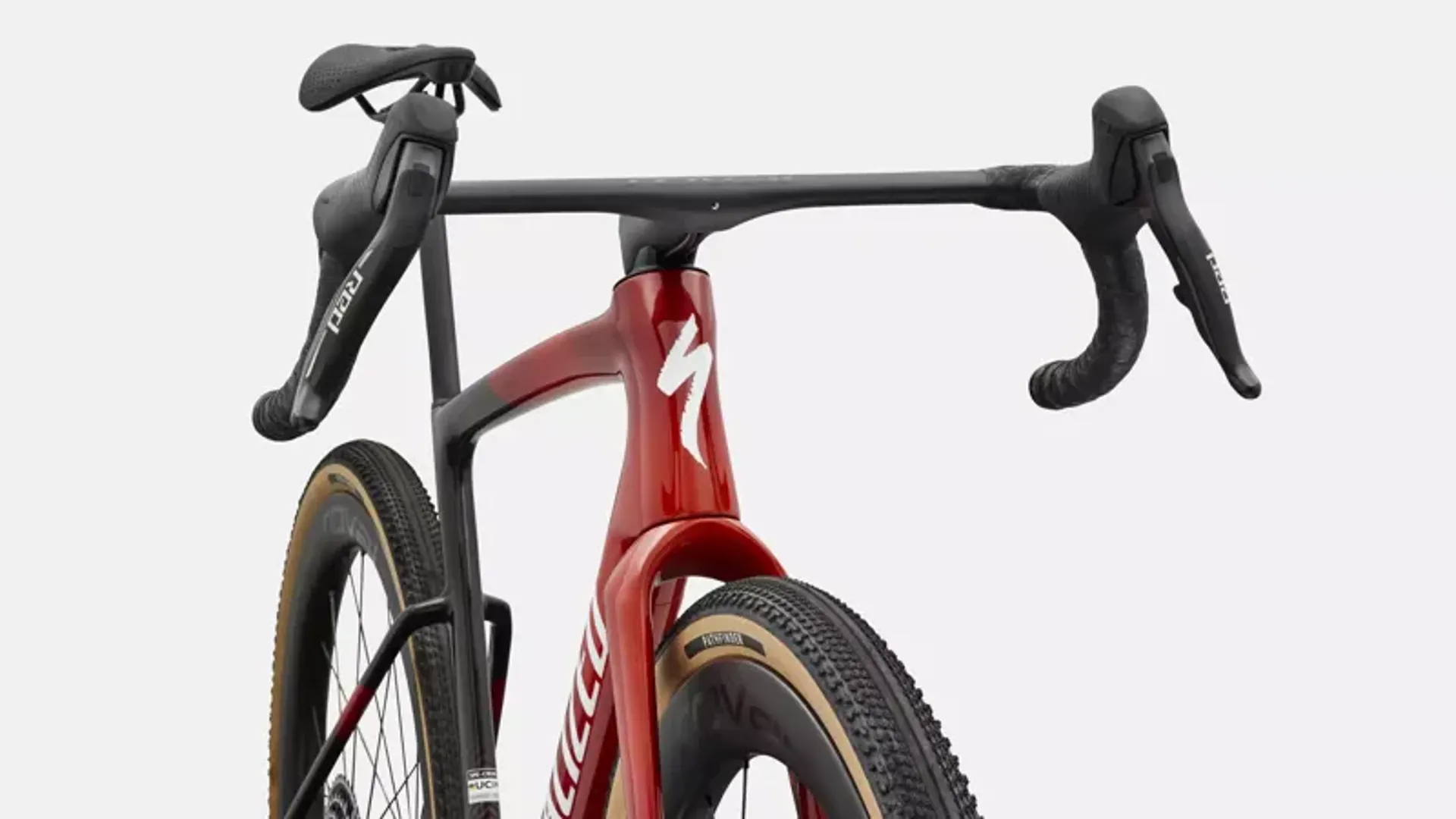

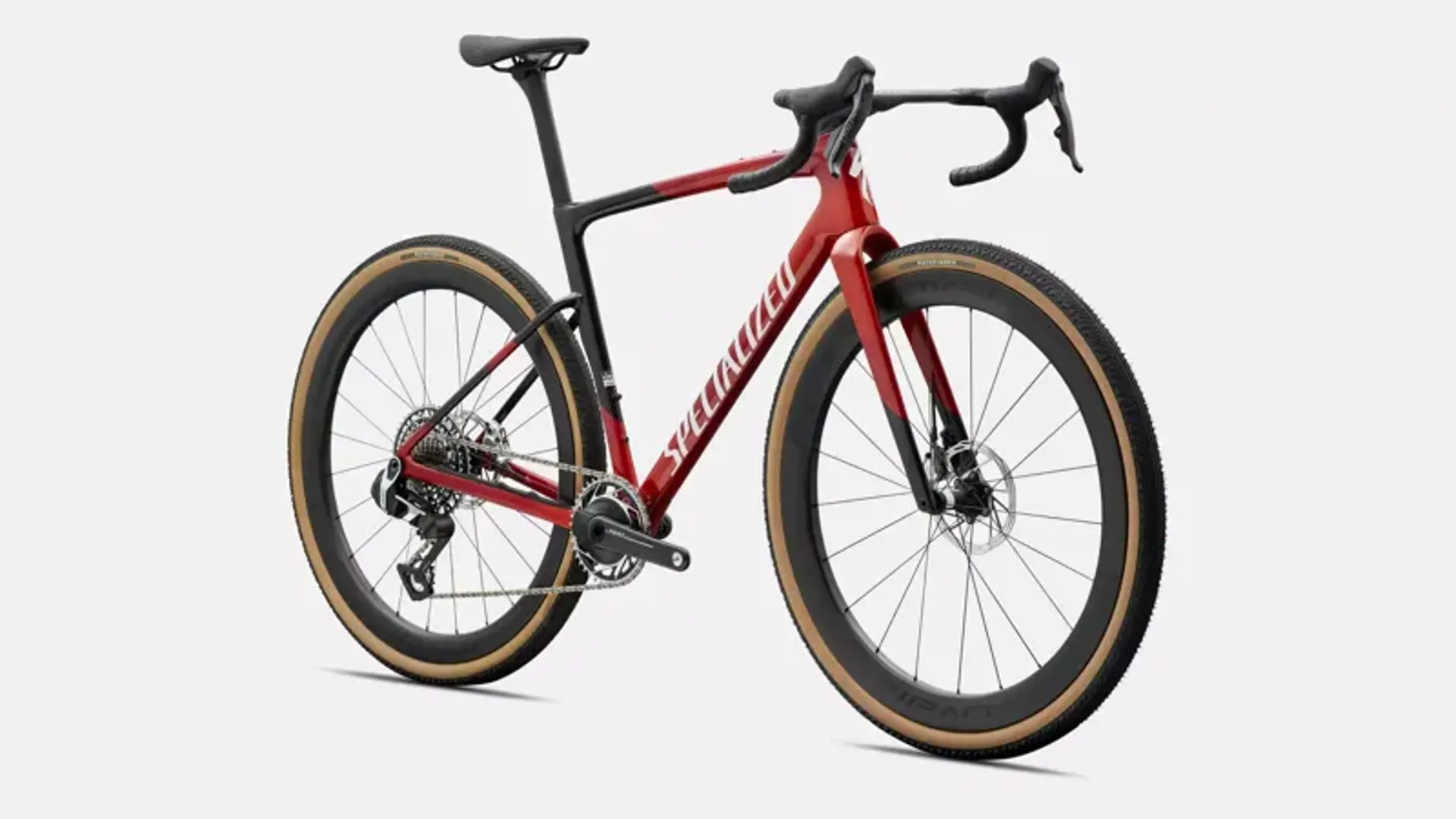

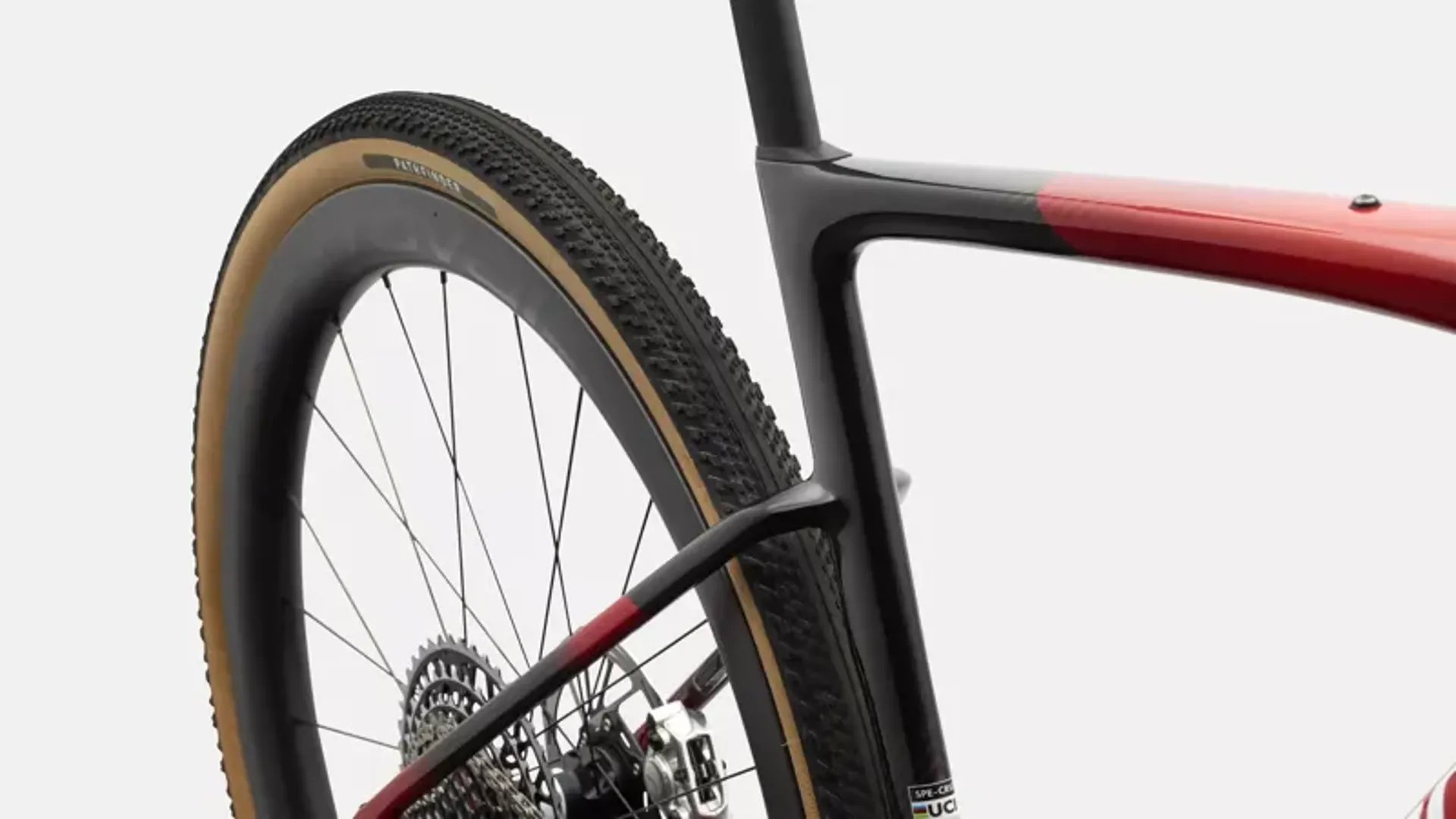

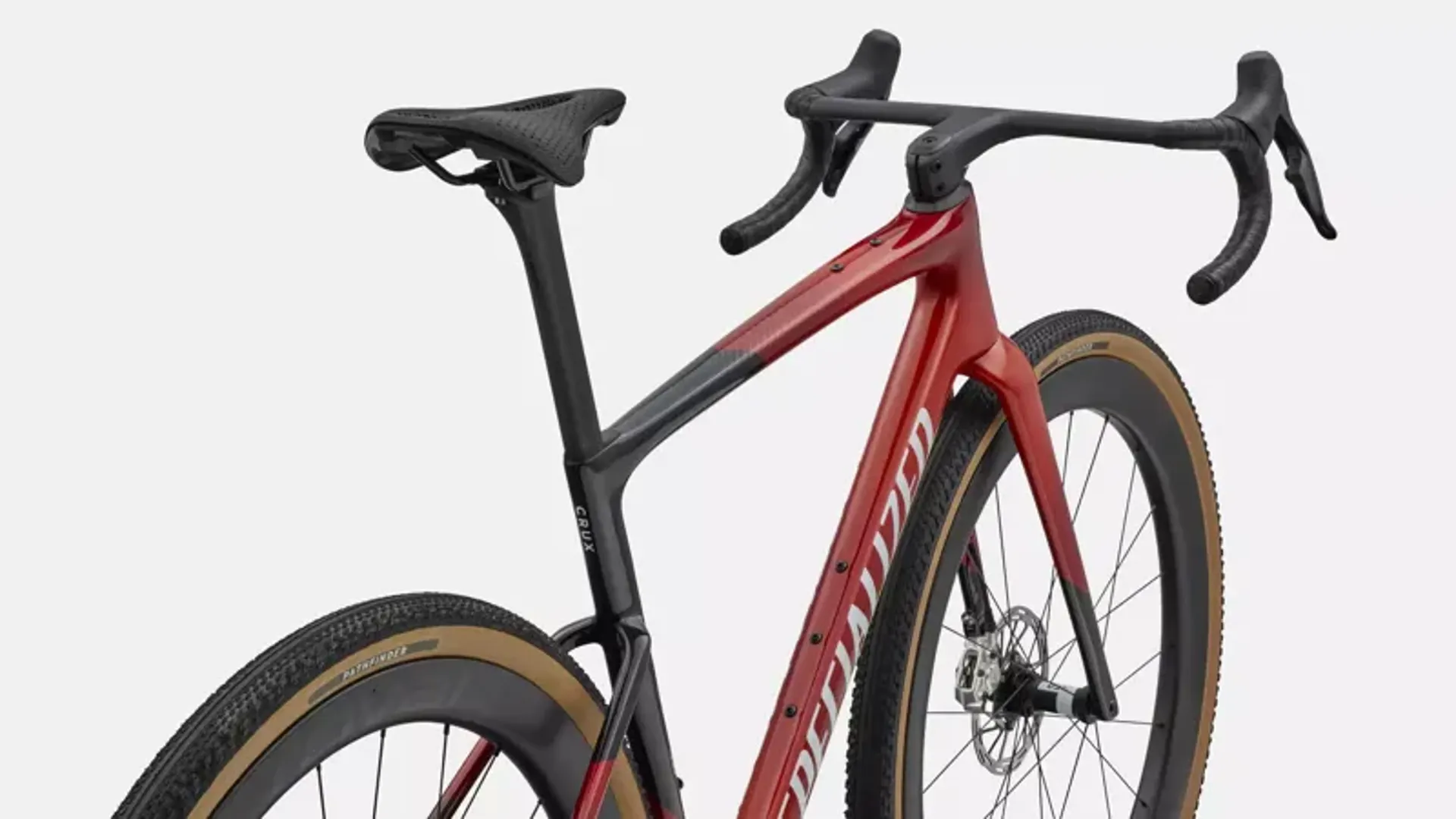

Specialized Crux 5 S-Level Gravel Bike SRAM RED XPLR Redwood/White

Season:2027

Brand:Specialized

Code:42948295469836

The Crux 5. Just launched and already dominating races at the highest level.

At the 2026 Unbound Gravel200.Not only were both winners, Sofia Gomez Villafañe and Mads Wurtz Schmidt, riding the Crux 5 bike, so too were both second-place finishers, as well as third and fifth place for the men.

The Crux 5 S-Level was born from the fastest gravel race bike ever made. It delivers the lowest real-world time to finish of any gravel bike ever made.

The Crux 5 S-Level turns more effort into pure speed, validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

As Specialized's most aerodynamic gravel race bike, the Crux 5 draws from Tarmac SL8 learnings and decades of aero research, with every tube sculpted for speed at elite gravel race speeds. It is 15.2 watts faster. The bike delivers telepathic handling, instantaneous acceleration, and balanced compliance that reduces fatigue on the roughest courses. Rider First Engineered and now with 55mm tire clearance for unmatched traction and comfort, it preserves the legendary ride feel of the Crux 4 while adding real aerodynamic performance.

Crux 5 is up to 9:58 faster over Unbound, based on simulations for Sofía Gómez Villafañe vs. Crux 4, assuming same course, conditions, and rider input as 2025 Unbound.

Features:

  • Use: Gravel Racing
  • Frame: FACT 10r Carbon (897 grams)
  • Wheels: Roval Terra Aero CL
  • Cockpit: Roval Terra Integrated
  • Drivetrain: SRAM RED XPLR
  • Weight: 7.7 kg
Technical Information
  • Frame
    Crux 5 FACT 10r Carbon, Rider First Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
  • Frame Weight
    897g
  • Fork
    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
  • Front Brake
    SRAM RED E1, hydraulic disc
  • Rear Brake
    SRAM RED E1, hydraulic disc
  • Shift Levers
    SRAM RED AXS E1, hydraulic disc
  • Rear Derailleur
    SRAM RED AXS XPLR E1, 13-speed
  • Cassette
    SRAM RED XPLR E1, 13-speed, 10-46t
  • Chain
    SRAM RED E1 Flattop 12-speed
  • Crankset
    SRAM RED XPLR E1, Quarq power meter, 40t
  • Bottom Bracket
    SRAM DUB BSA 68 Wide
  • Front Tyre
    Pathfinder 700x45, Tubeless Ready
  • Front Wheel
    Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
  • Rear Tyre
    Pathfinder 700x45, Tubeless Ready
  • Rear Wheel
    Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
  • Inner Tubes
    700x32-50mm, 60mm Presta valve
  • Tyre Clearance
    55mm
  • Handlebars
    Roval Terra Cockpit, Integrated Bar/Stem
  • Tape
    Supacaz Super Sticky Kush
  • Saddle
    Power Pro Mirror, Hollow Ti rails
  • Seatpost
    S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
  • Seat Binder
    Integrated Wedge
  • Weight
    7.7 kg (16 lb, 15.6 oz)
  • Weight Size
    56
  • Use
    Gravel Racing
  • Size
    49
    52
    54
    56
    58
    61
  • Crank Length
    165mm
    165mm
    170mm
    170mm
    172.5mm
    172.5mm
  • Handlebar Width
    380mm
    380mm
    400mm
    400mm
    420mm
    420mm
  • Stem Length
    75mm
    90mm
    90mm
    100mm
    100mm
    100mm
  • Saddle Width
    155mm
    155mm
    143mm
    143mm
    143mm
    143mm
  • Seatpost Length
    300mm
    300mm
    380mm
    380mm
    380mm
    380mm
  • Stack
    530mm
    547mm
    560mm
    578mm
    598mm
    621mm
  • Reach
    375mm
    382mm
    388mm
    400mm
    412mm
    425mm
  • Head Tube Length
    95mm
    110mm
    125mm
    142mm
    163mm
    188mm
  • Head Tube Angle
    70.5°
    70.75°
    71°
    71.5°
    71.5°
    71.5°
  • BB Height
    278mm
    278mm
    280mm
    280mm
    280mm
    280mm
  • BB Drop
    80mm
    80mm
    78mm
    78mm
    78mm
    78mm
  • Trail
    72mm
    71mm
    69mm
    66mm
    66mm
    66mm
  • Fork Length, Full
    401mm
    401mm
    401mm
    401mm
    401mm
    401mm
  • Fork Rake/Offset
    51mm
    51mm
    51mm
    51mm
    51mm
    51mm
  • Front Center
    594mm
    604mm
    613mm
    626mm
    644mm
    665mm
  • Chainstay Length
    425mm
    425mm
    425mm
    425mm
    425mm
    425mm
  • Wheelbase
    1008mm
    1016mm
    1026mm
    1039mm
    1057mm
    1078mm
  • Top Tube Length, Horizontal
    512mm
    534mm
    543mm
    566mm
    583mm
    603mm
  • Bike Standover Height
    753mm
    766mm
    781mm
    803mm
    823mm
    849mm
  • Seat Tube Length
    445mm
    456mm
    473mm
    497mm
    515mm
    545mm
  • Seat Tube Angle
    75.5°
    74.5°
    74.5°
    74°
    74°
    74°
Sizing Information
MTB Sizes (Note on 'S' Sizing - size UP for stability, size DOWN for a maneuverability)
InchesCMStandard Bike Size'S' Size
4'10"-5'1"148-155XSS1
5'2"-5'5"158-165SS2
5'5"-5'10"165-178MS3
5'10"-6'1"178-185LS4
6'1"-6'4"185-193XLS5
6'3"-6"4"191-200XXLS6

Road Bike Sizes
InchesCMSize
5'1"-5'4"155-16349
5'4"-5'7"163-17052
5'7"-5'10"170-17554
5'9"-6'0"175-18356
5'11"-6'2"180-18858
6'2"-6'5"188-19661

Hybrid Bike Sizes
InchesCMSize
4'8"-4'11"142-150XXS
4'11"-5'2"150-158XS
5'1"-5'5"155-165S
5'5"-5'9"165-175M
5'9"-6'0"175-183L
6'0"-6'4"183-193XL
6'4"-6'6"193-198XXL

Kids Bike Sizes
InchesCMBikes
29"-32"73-81Hotwalk
31"-37"79-94Riprock 12
37"-42"94-107Riprock 16
41"-52"107-133Riprock 20
47"-56"119-142Riprock 24
37"-48"95-121Jett 16
40"-45"102-139Jett 20
44"-62"112-156Jett 24
