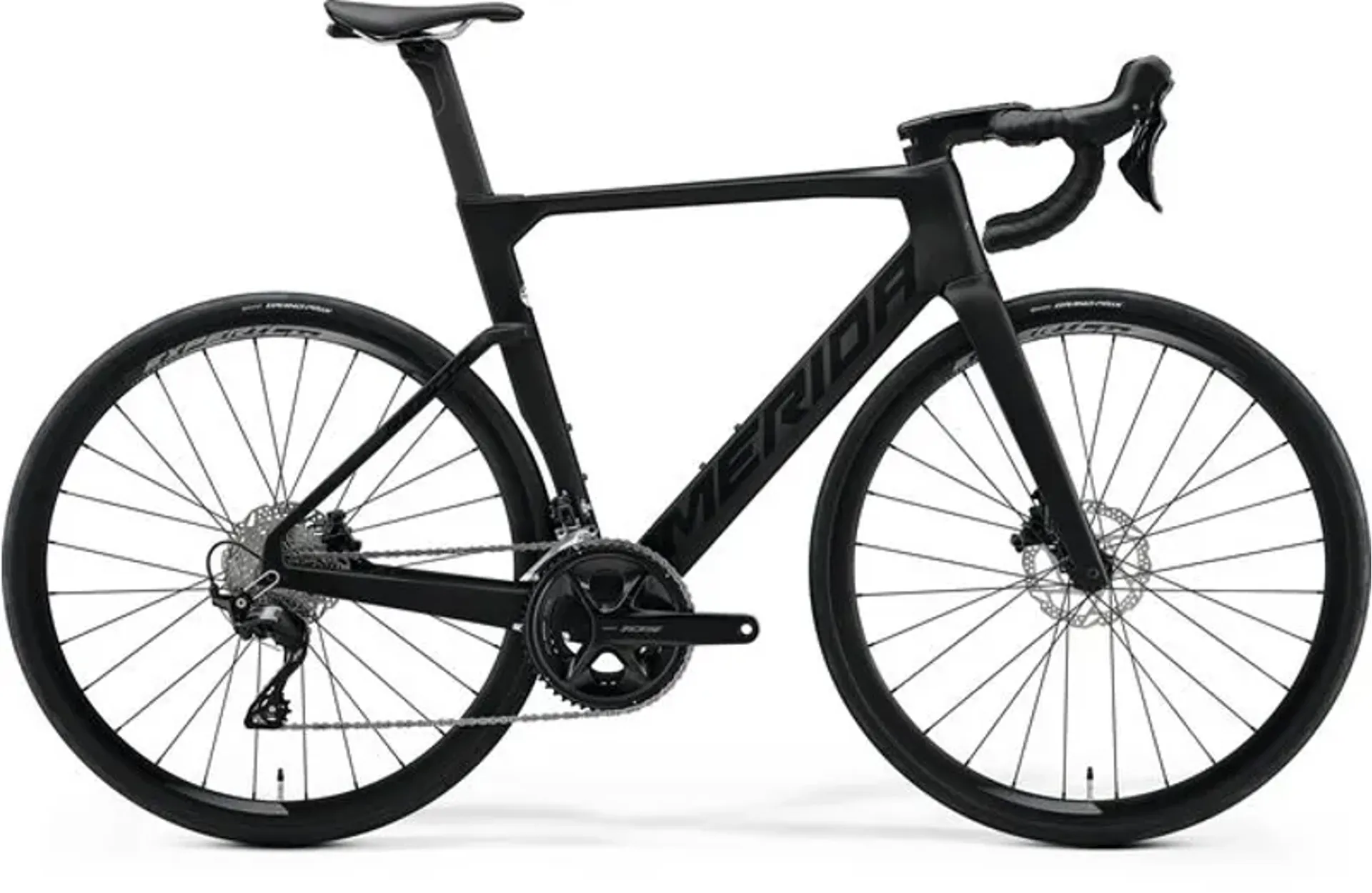

Merida Reacto 4000 Carbon Road Bike in Black/Gunal Grey

Season:2027

Brand:Merida

Code:P-S077

The latest generation of the Merida Reacto 4000 delivers fundamental changes that further improve its aerodynamics, reduce its weight and offer tyre clearance up to 32 mm.

The Reacto 4000 uses exactly the same super-aero frame shape as Merida's top level models. Using the utterly reliable Shimano 105 groupset with hydraulic disc brakes and some choice components, it is ready to ride and race from the box, as well as being a great platform to upgrade as you progress. Featuring Merida's lightweight CF3 carbon frame with race-proven geometry, the Reacto 4000 is far from an entry-level bike, but if you are starting out in road racing or want a fast and well-balanced aero road bike, then it is a perfect choice.

The Reacto 4000 offers impressive comfort due to the generous tyre clearance and the fitted S-FLEX carbon seat post. At the same time, the latest super smooth mechanical 12-speed Shimano 105 groupset keeps shifting and braking in perfect check. This is the ideal aero bike for your first steps into the racing world as well as challenging club rides. Its outstanding aerodynamic performance, reduced weight, sharp handling and super quick acceleration makes it the perfect bike for criterium racers and sprinters. At the same time, the class-leading comfort gives it the ability to play out its aerodynamic advantage also on the cobblestones or the idyllic but potholed littered lanes of your favourite training ride.

Features:

  • Lightweight CF3 carbon aero frame (approx. 1,150 g - in size M)
  • Shimano 105 12-speed mechanical groupset
  • MERIDA EXPERT SL stem/MERIDA EXPERT CW handlebar combination
  • MERIDA S-FLEX carbon aero post
  • DISC COOLER technology and WIRE PORT cable integration
  • Seat post integrated rear light
Technical Information
  • Frame
    REACTO CF3 IV; material: carbon; 700x30C max. wheelsize; 100x12/ 142x12mm axle standard; BB86,5 bottom bracket standard
  • Frame size
    3XS, XXS, XS, S, M, L, XL
  • Color
    MATT MOUNTAIN BLUE (BLACK)
  • Fork
    MERIDA REACTO CF3 IV DISC; material: carbon; 700x30C max. wheelsize
  • Brakes
    Shimano 105; Disc
  • Rotors
    Shimano RT54; 160mm
  • Brake lever
    Shimano 105
  • Headset
    MERIDA TEAM SL; VP-MRBHB (OP203 neck)
  • Handlebar
    MERIDA EXPERT CW; material: aluminium; 380mm (3S-XXS-XS-S); 400mm (M-L) 420mm (XL)
  • Handlebar stem
    MERIDA EXPERT SL 2P II; material: aluminium; -9°° stem angle; 90 mm (XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)
  • Grip
    MERIDA ROAD EXPERT
  • Derailleur (f)
    Shimano 105
  • Derailleur (r)
    Shimano 105; GS
  • Shifters
    Shimano 105 disc
  • Seat post
    MERIDA TEAM CW; Aero shape; 15mm setback; Carbon
  • Seat clamp
    MERIDA REACTO Aero
  • Saddle
    MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool
  • Chain
    Shimano M6100-12
  • Crank
    Shimano 105 R7100; 52-36 teeth; 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
  • Freewheel
    Shimano 105 R7101; 11-34 teeth; 12 speed
  • Bottom bracket
    Shimano SM-BB71-41B; Pressfit 86.5
  • Hubs
    Shimano TC500 / Shimano TC500-HL; 100x12mm width front hub; 28 spoke holes; Centerlock; 12x142mm width rear hub; 28 spoke holes; Centerlock
  • Rim
    MERIDA EXPERT CW; 19mm inner width; 30mm height; material: aluminium; Tubeless ready (tubeless tape and valves not included)
  • Tyre front
    Continental Grand Prix; 700x28C; fold *
  • Tyre rear
    Continental Grand Prix; 700x28C; fold *
  • Axles
    MERIDA EXPERT SL; including removable lever; 6/4mm allen key
  • Spokes
    Double Butted Black stainless
  • Approx. weight
    9 kg (weighed at frame size M)
  • Max. weight
    120 kg
  • Geometry: Tyre Sizes
    3XS: 28"; XXS: 28"; XS: 28"; S: 28"; M: 28"; L: 28"; XL: 28"
  • Geometry: ST seat tube [mm]
    3XS: 440; XXS: 470; XS: 500; S: 520; M: 540; L: 560; XL: 590
  • Geometry: TT top tube [mm]
    3XS: 505; XXS: 520; XS: 536; S: 545; M: 560; L: 575; XL: 590
  • Geometry: CS chain stay length [mm]
    3XS: 408; XXS: 408; XS: 408; S: 408; M: 408; L: 408; XL: 408
  • Geometry: HTA head tube angle [°]
    3XS: 70.5; XXS: 70.5; XS: 72; S: 72.5; M: 73.5; L: 73.5; XL: 74
  • Geometry: STA seat tube angle [°]
    3XS: 75.5; XXS: 74.5; XS: 74; S: 74; M: 73.5; L: 73; XL: 73
  • Geometry: BD bottom bracket drop [mm]
    3XS: 70; XXS: 70; XS: 70; S: 66; M: 66; L: 66; XL: 66
  • Geometry: HT head tube [mm]
    3XS: 100; XXS: 105; XS: 112; S: 128; M: 140; L: 155; XL: 176
  • Geometry: FL fork length [mm]
    3XS: 385; XXS: 385; XS: 385; S: 385; M: 385; L: 385; XL: 385
  • Geometry: R reach [mm]
    3XS: 373; XXS: 377; XS: 384; S: 390; M: 395; L: 400; XL: 409
  • Geometry: S stack [mm]
    3XS: 512; XXS: 517; XS: 529; S: 542; M: 557; L: 571; XL: 593
  • Geometry: WB wheel base [mm]
    3XS: 979; XXS: 985; XS: 983; S: 990; M: 990; L: 999; XL: 1010
  • Geometry: SH stand over height [mm]
    3XS: 727; XXS: 746; XS: 771; S: 792; M: 810; L: 826; XL: 853
  • Spare Parts: TUBE
    foam; ID6mm L350mm (No. 1); foam; ID5mm L400mm (No. 2)
  • Spare Parts: EXPANDER
    for fork steerer ID 23.6mm (No. 3)
  • Spare Parts: HEADSET
    FSA NO.55R 1.5"/ACR/STD (TH-MR127, TH-MR168) (No. 4)
  • Spare Parts: TUBE
    woven; L40mm for size XXS/XS (No. 5); woven; L60mm for size S (No. 5); woven; L70mm for size M (No. 5); woven; L90mm for size L (No. 5); woven; L105mm for size XL (No. 5)
  • Spare Parts: DISC COOLER
    front; for FM160/FM180 (No. 6); rear; for FM140/FM160 (No. 28)
  • Spare Parts: SCREW
    M5x0.8 L16mm (No. 7, Torque 6~8 NM); M6x1 L45mm (No. 13, Torque 10~12 NM); M5x0.8 L15mm (No. 17, Torque 3~4 NM); M3x0.5 L10mm (No. 24, Torque 2~4 NM)
  • Spare Parts: THRU AXLE
    EXPERT SL; L=120mm M12x1.5 TL=12mm (No. 8); EXPERT SL; L=162.5mm M12x1.5 TL=12mm (No. 29)
  • Spare Parts: CLAMP
    for saddle rail; left inner part (No. 9); for saddle rail; left outer part (No. 10); for saddle rail; right inner part (No. 11); for saddle rail; right outer part (No. 12); for seatpost (No. 16, Torque 5~6 NM)
  • Spare Parts: COVER
    for S-FLEX seatpost; with LED light (No. 14a); for S-FLEX seatpost, w/o light (No. 14b); for seatpost clamp (No. 15)
  • Spare Parts: MOUNT
    for FD (No. 18)
  • Spare Parts: BLIND PLUG
    for Di2 (No. 19); for mechanical (No. 25)
  • Spare Parts: CABLE PLUG
    for Di2 (No. 20); for Di2 (No. 27)
  • Spare Parts: PROTECTOR
    for chain stay (No. 21)
  • Spare Parts: RD HANGER
    DH-068 for ROAD-RD (No. 22); DH-067 for SHIMANO direct mount (No. 23)
